ProductsKnobs, handwheels, handles and gripsHandwheelsAluminium spoked handwheel DIN 950

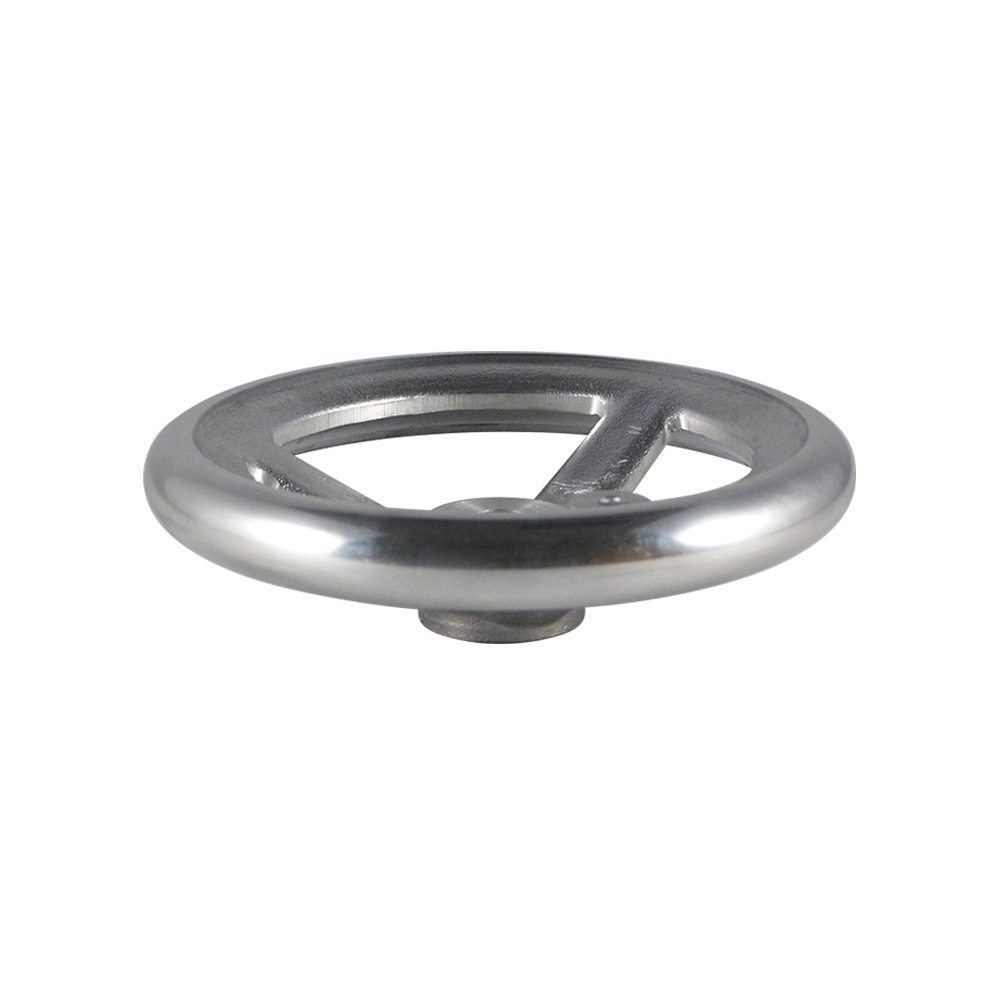

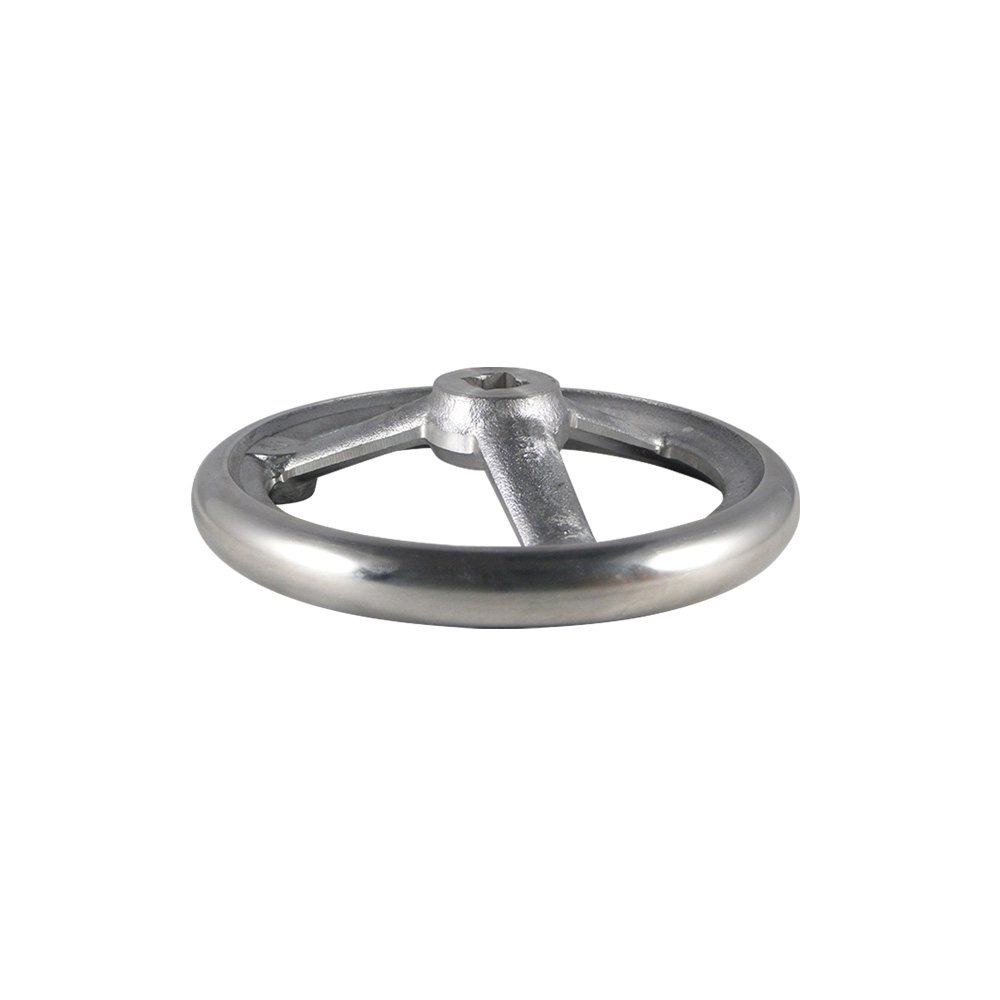

Aluminium spoked handwheel DIN 950

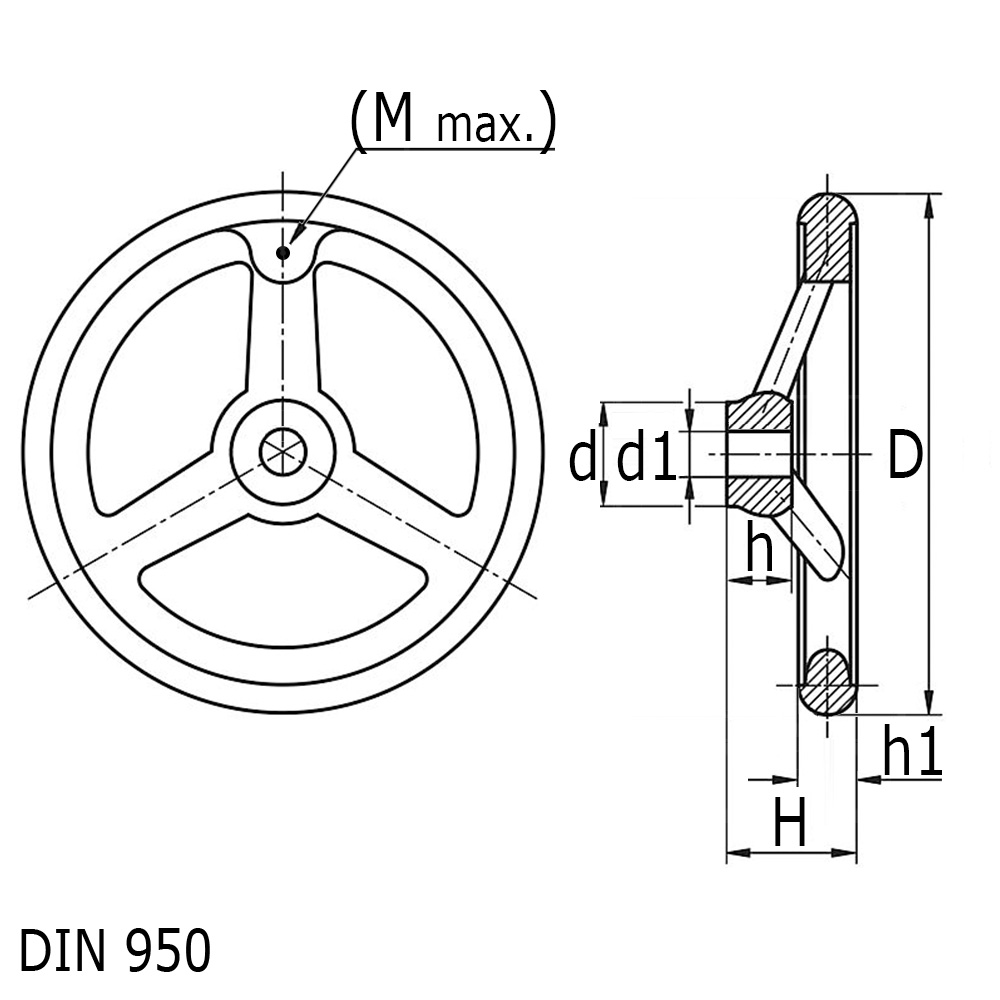

Aluminium spoked handwheel DIN 950drawing_1

Product information

Aluminium spoked handwheels are available in wheel diameters from Ø 80 mm to Ø 500 mm inclusive
Available to DIN 950 - round mounting hole without keyway from Ø 8 mm to Ø 34 mm inclusive
Machined and polished rim
Unpolished parts bead blasted
Pre-centred flat for fitting a ball handle (DIN 39 or DIN 98) or conical handle
Suitable for use as a control handwheel for valves, machines, industrial plant, vehicles, etc.

Material: AL (aluminium)
Colour: Rim - highly polished aluminium, Hub and spokes – bead-blasted aluminium

Legend
Bore=hole size, DIN=DIN model, D=rim Ø, d=hub Ø, H=total height, h=hub height, h1=rim height, M=maximal threadsize for additional handle (position is precentered)

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	D	d	d1	H	h	h1	M	Colour/RAL	DIN
3920802406	Aluminium hand wheel 80X24X16X29 with bore 6	80	24	0	29	16	14	M 6	Aluminium	DIN 950
3920802408	Aluminium hand wheel 80X24X16X29 with bore 8	80	24	8	29	16	14	M 6	Aluminium	DIN 950
3921002610	Aluminium hand wheel 100X26X17X33 with bore 10	100	26	10	33	17	15	M 6	Aluminium	DIN 950
3921252812	Aluminium hand wheel 125X28X18X36 with bore 12	125	28	12	36	18	16	M 8	Aluminium	DIN 950
3921403012	Aluminium hand wheel 140X30X19X39 with bore 12	140	30	12	39	19	17	M 8	Aluminium	DIN 950
3921603208	Aluminium hand wheel 160X32X20X40 with bore 8	160	32	8	40	20	18	M 8	Aluminium	DIN 950
3921603212	Aluminium hand wheel 160X32X20X40 with bore 12	160	32	12	40	20	18	M 8	Aluminium	DIN 950
3921603214	Aluminium hand wheel 160X32X20X40 with bore 14	160	32	14	40	20	18	M 8	Aluminium	DIN 950
3921803516	Aluminium hand wheel 180X35X22X43 with bore 16	180	35	16	43	22	20	M10	Aluminium	DIN 950
3922003810	Aluminium hand wheel 200X38X24X45 with bore 10	200	38	10	45	24	22	M10	Aluminium	DIN 950
3922003818	Aluminium hand wheel 200X38X24X45 with bore 18	200	38	18	45	24	22	M10	Aluminium	DIN 950
3922254220	Aluminium hand wheel 225X42X26X48 with bore 20	225	42	20	48	26	24	M10	Aluminium	DIN 950
3922504522	Aluminium hand wheel 250X45X28X50 with bore 22	250	45	22	50	28	26	M12	Aluminium	DIN 950
3922805024	Aluminium hand wheel 280X50X30X53 with bore 24	280	50	24	53	30	26	M12	Aluminium	DIN 950
3923155316	Aluminium hand wheel 315X53X33X56 with bore 16	315	53	16	56	33	28	M12	Aluminium	DIN 950
3923155326	Aluminium hand wheel 315X53X33X56 with bore 26	315	53	26	56	33	28	M12	Aluminium	DIN 950
3923606028	Aluminium hand wheel 360X60X35X59 with bore 28	360	60	28	59	35	30	M12	Aluminium	DIN 950
3924006530	Aluminium hand wheel 400X65X38X63 with bore 30	400	65	30	63	38	32	M16	Aluminium	DIN 950
3925007834	Aluminium hand wheel 500X78X45X72 with bore 34	500	78	34	72	45	34	M16	Aluminium	DIN 950
