13.12.7

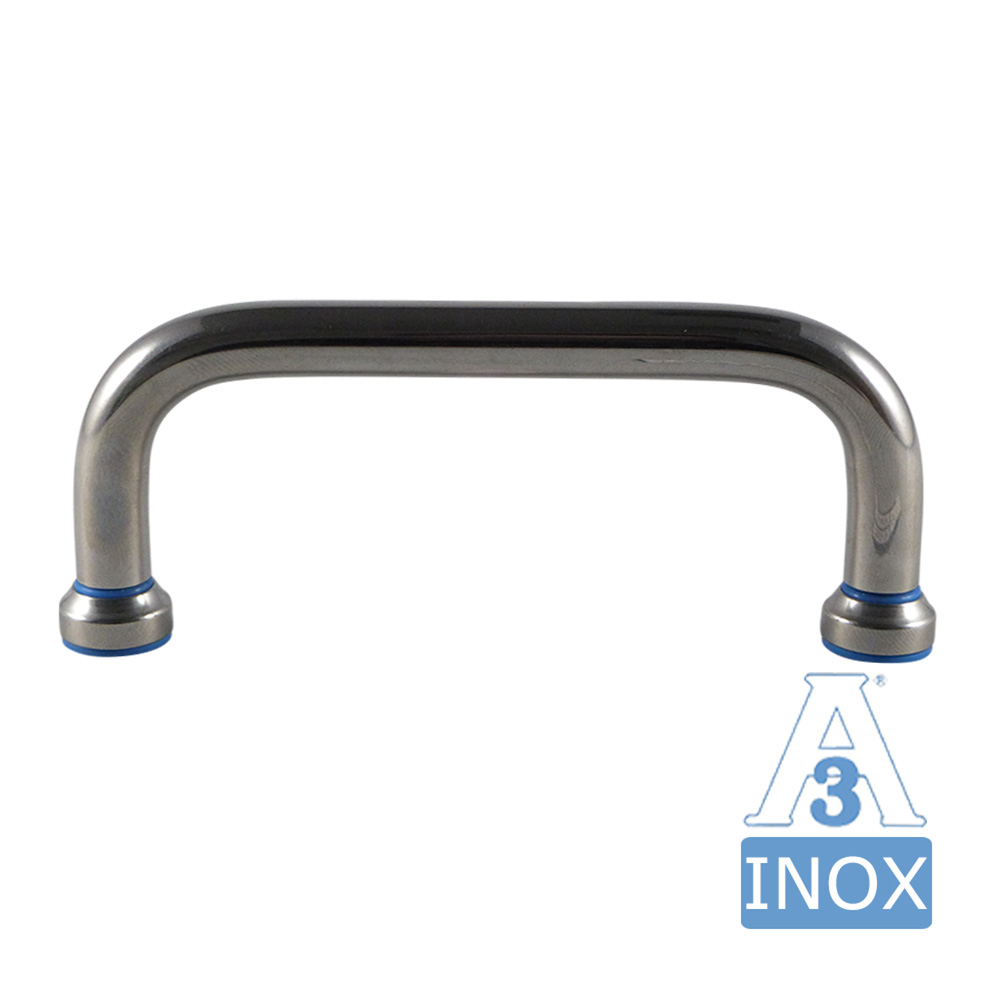

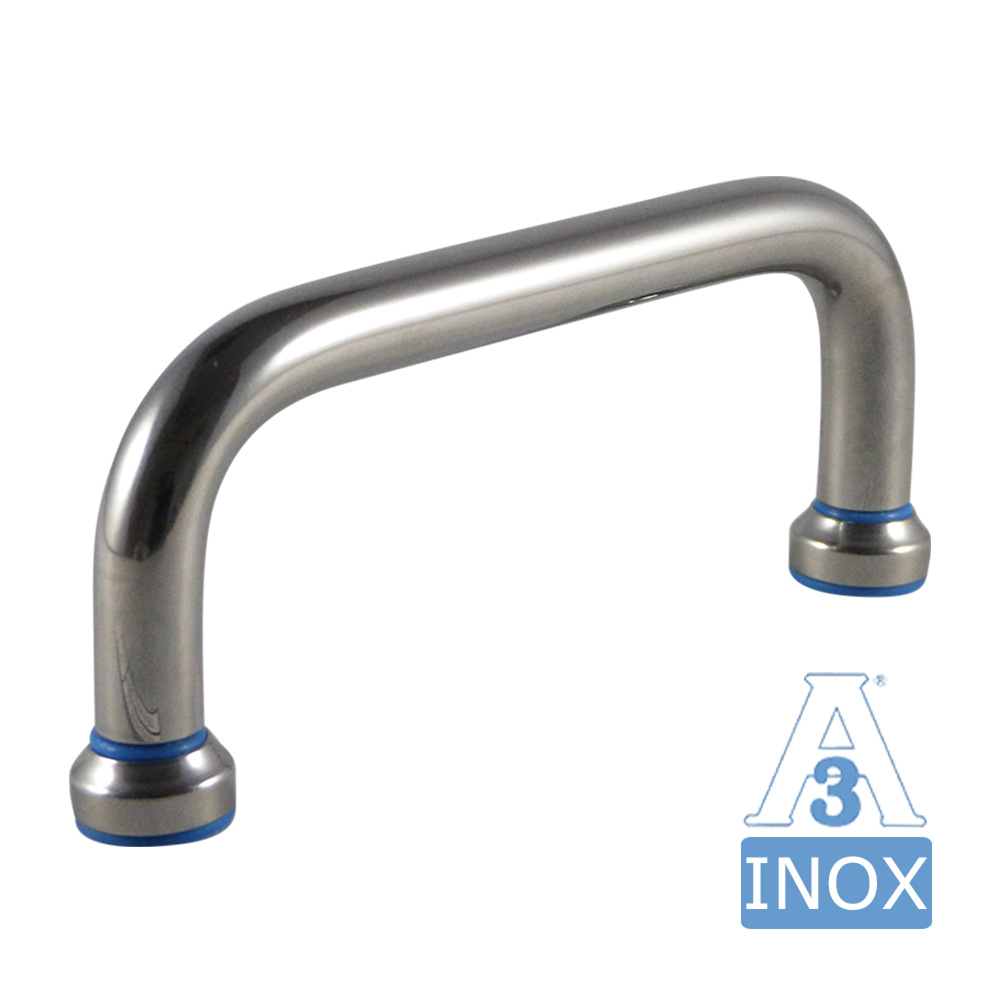

Stainless steel D-Handle – 3-A sanitary standard
Product information
- Stainless steel D-Handles in 3A hygiene quality are available in handle lengths of 98mm to 190mm inclusive
- The handles is equipped with supporting washers and M5 tapped bores
- Highest hygiene standards: 3-A Sanitary Standard “88-00” certified
- IP69K certified
- Standard available in stainless steel V2A (AISI 304) with high surface finish
- Easily cleanable and water repellent surfaces
- Equipped with a blue (visual detectable) silicone gasket on the mounting face
- Sustainable protection against bacterial attacks
- Particularly suitable for application in food industry and pharmaceutical industry and other sectors were hygiene and good cleanability is of great importance.
Material: D-handle and supporting washers – stainless steel V2A (AISI 304), gasket – silicone rubber
Colour: D-handle and supporting washers – highly polished stainles steel, gasket - blue />
On request:
- Stainless steel V4A (AISI 316)
Legend

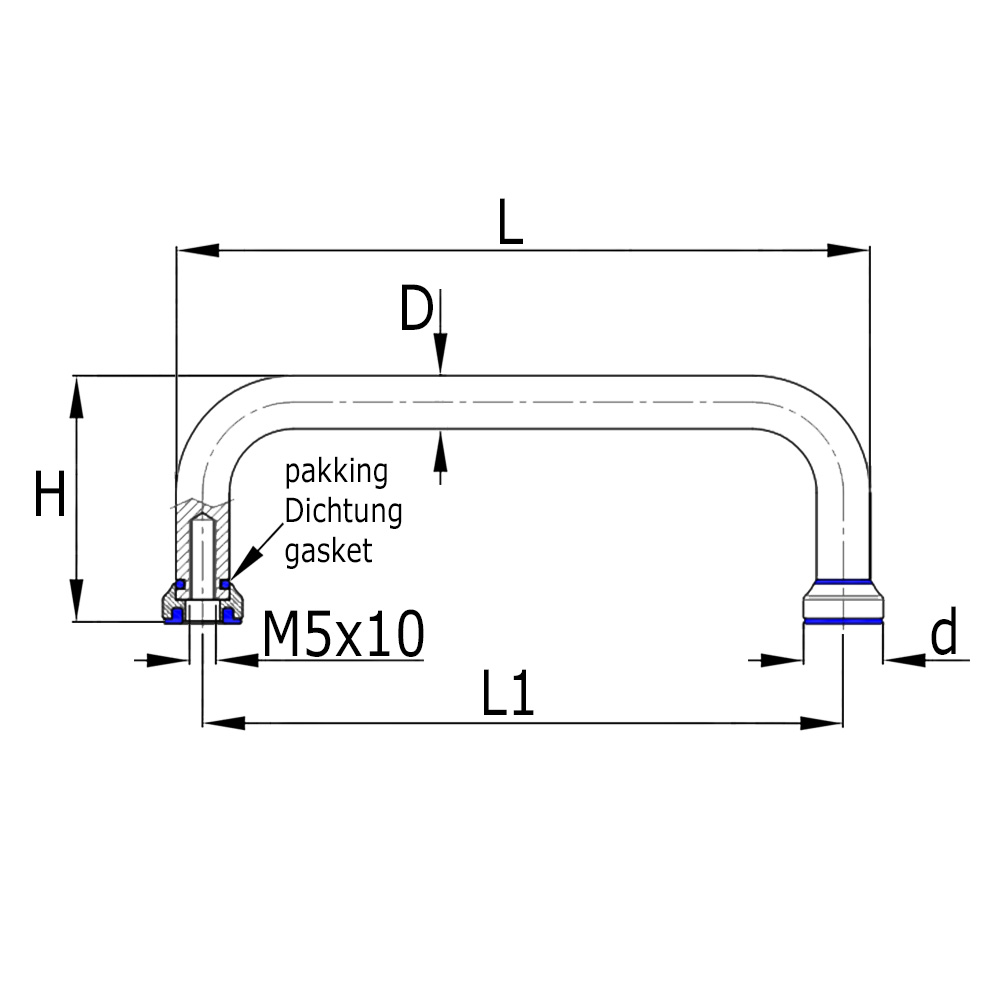

D=Ø-handle, d=Ø-mounting face, H=total height, L=length, L1=centre-to centre dimension between holes, M=metric thread size
