ProductsKnobs, handwheels, handles and gripsLobed knobsBakelite 4-lobe knob – DIN 6335 – tapped clearance holeHand knob thermosetting plastics 40mm M8 through thread

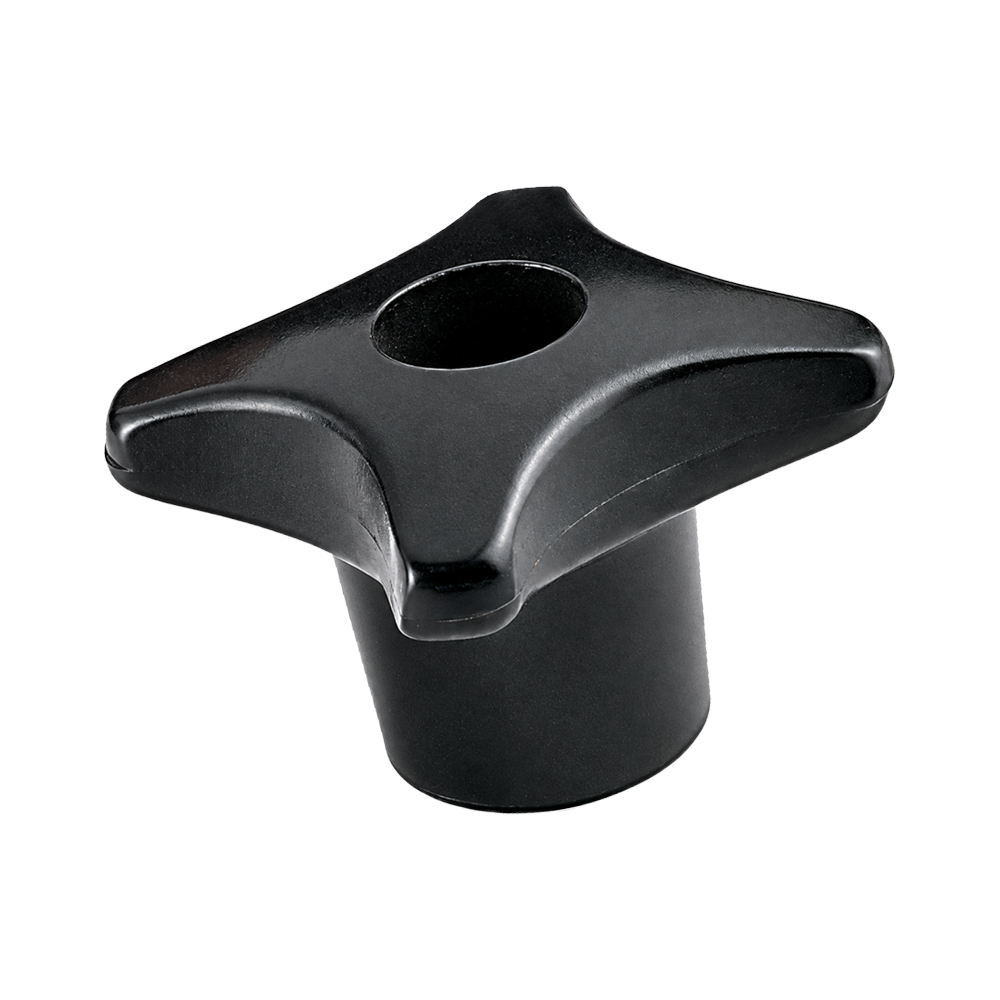

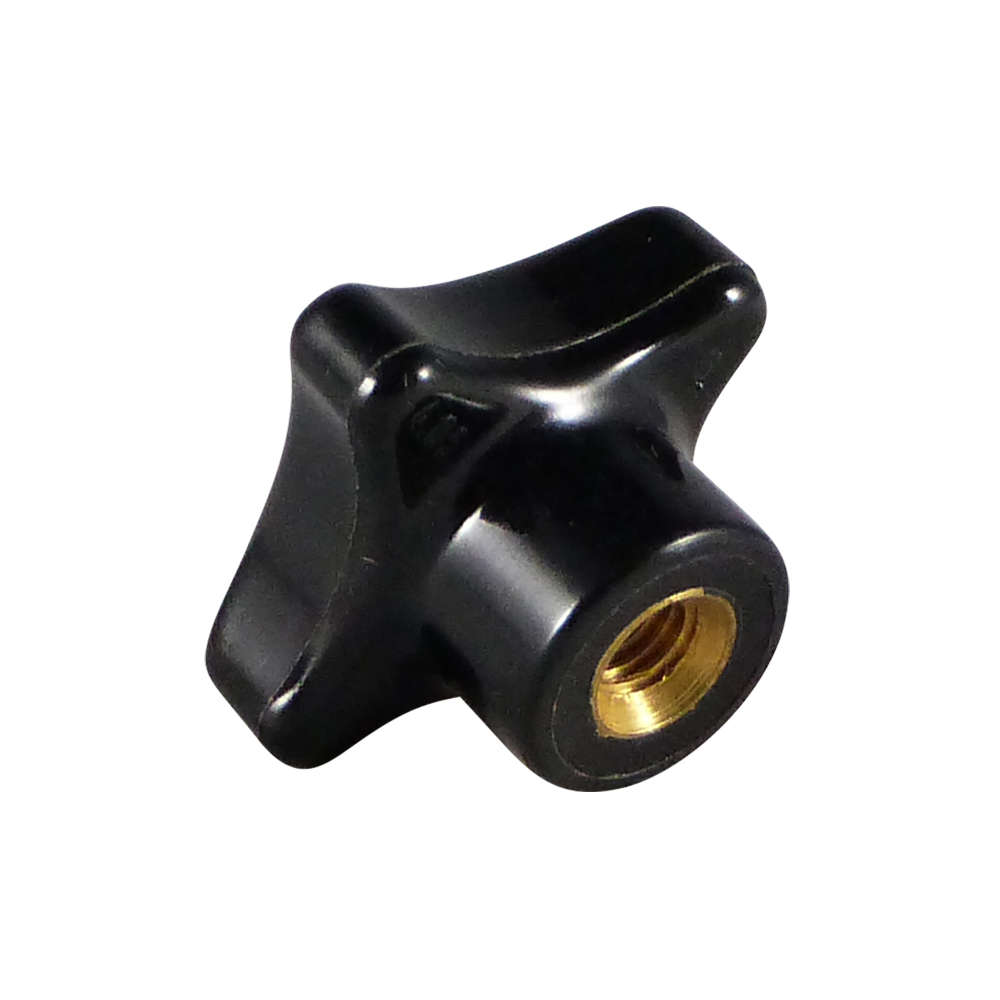

Hand knob thermosetting plastics 40mm M8 through thread

Hand knob thermosetting plastics 40mm M8 through thread
Hand knob thermosetting plastics 40mm M8 through thread
Hand knob thermosetting plastics 40mm M8 through thread
Hand knob thermosetting plastics 40mm M8 through thread
Hand knob thermosetting plastics 40mm M8 through thread
Hand knob thermosetting plastics 40mm M8 through thread
D : 40
H : 26
M : M 8
d : 18
h : 18
d1 : 8.4
t : 14
DIN : DIN 6335 D
Colour/RAL : Black
Legend

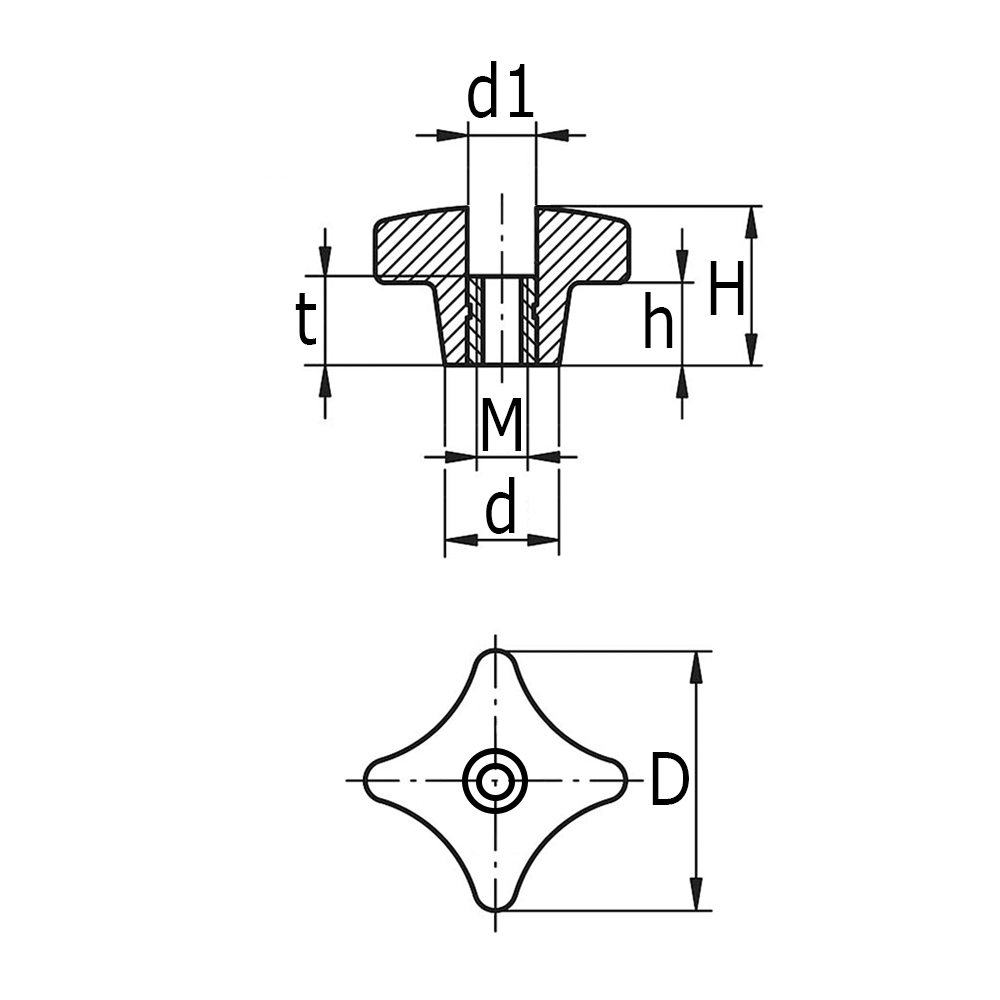

D=Knob diameter, d=Hub diameter, d1=Hole diameter, DIN=Technical standard for dimensions, H=Total height, h=Hub height, M=Thread size, t=Thread depth
Item-nr. :
3534008 Z
In stock :Yes
€ 3,5974
per piece
€ 4,3169 incl. VAT
