16.3.2.4

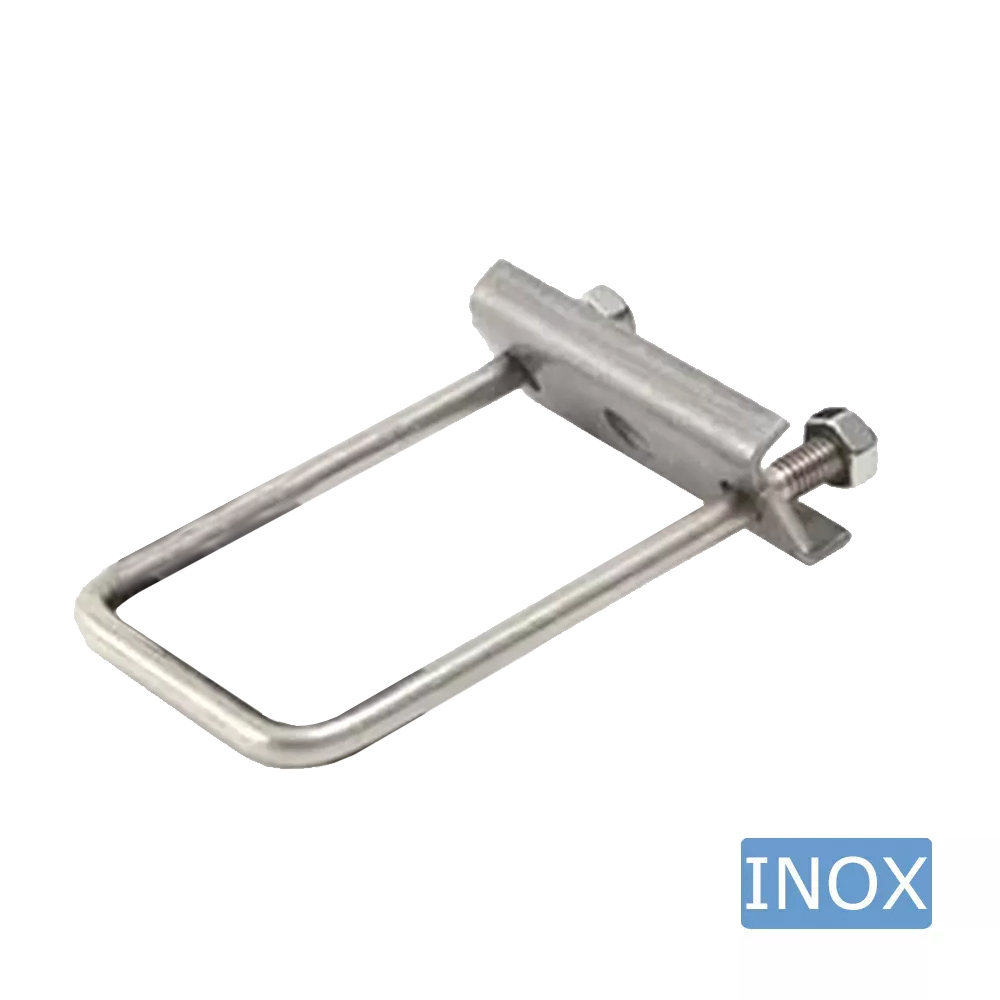

U-Bolt square stainless steel – Twin Mesh panels - 4
Product information
- These square stainless steel U-bolt connectors (model 4) are available for square fence posts in sizes from 60x40, 80x40, 100x40 or 120x40mm inclusive
- Thee set consits of:
- Stainless steel U-bolt
- 2x stainless steel nuts
- stainless steel counter plate
- Suitable for twin mesh panels with wire size Ø3-6mm, 3D security, 6-5-6 and 8-6-8 panels
- Some sizes available in both M6 and M8
- Increased safety option available with security shear nuts; screw connection can no longer be loosened
- After mounting the U-bolt connector the two plastic finishing plugs cover up the screw connection, therewith providing a neat finish and preventing vandalism
- U-bolt connectors are used to fix twin mesh panels or 3D mesh panels to fence posts by clamping them together. Therewith drilling holes is obsolete. In addition, these U-bolt connectors are used for attaching letterboxes etc. to fence posts.
Material:Stainless steel A2 (AISI 304)
Colour: stainless steel coloured

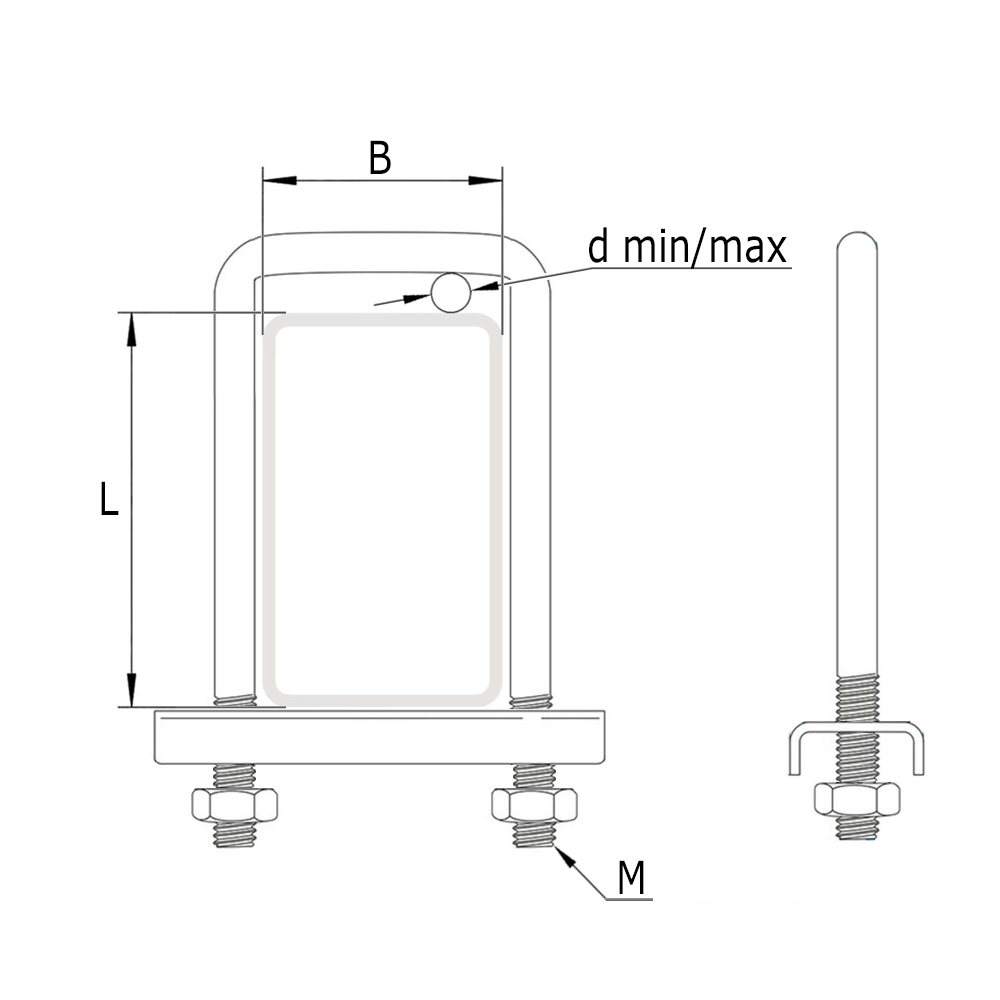

Legend
d-min/max=clamping range mesh-panel rod-Ø , M=Thread size, Tube size=tube size fence post, Type=type of nut
