ProductsFastenersPush-in fastenersFir tree fastener - PA 6.6
9.7.1

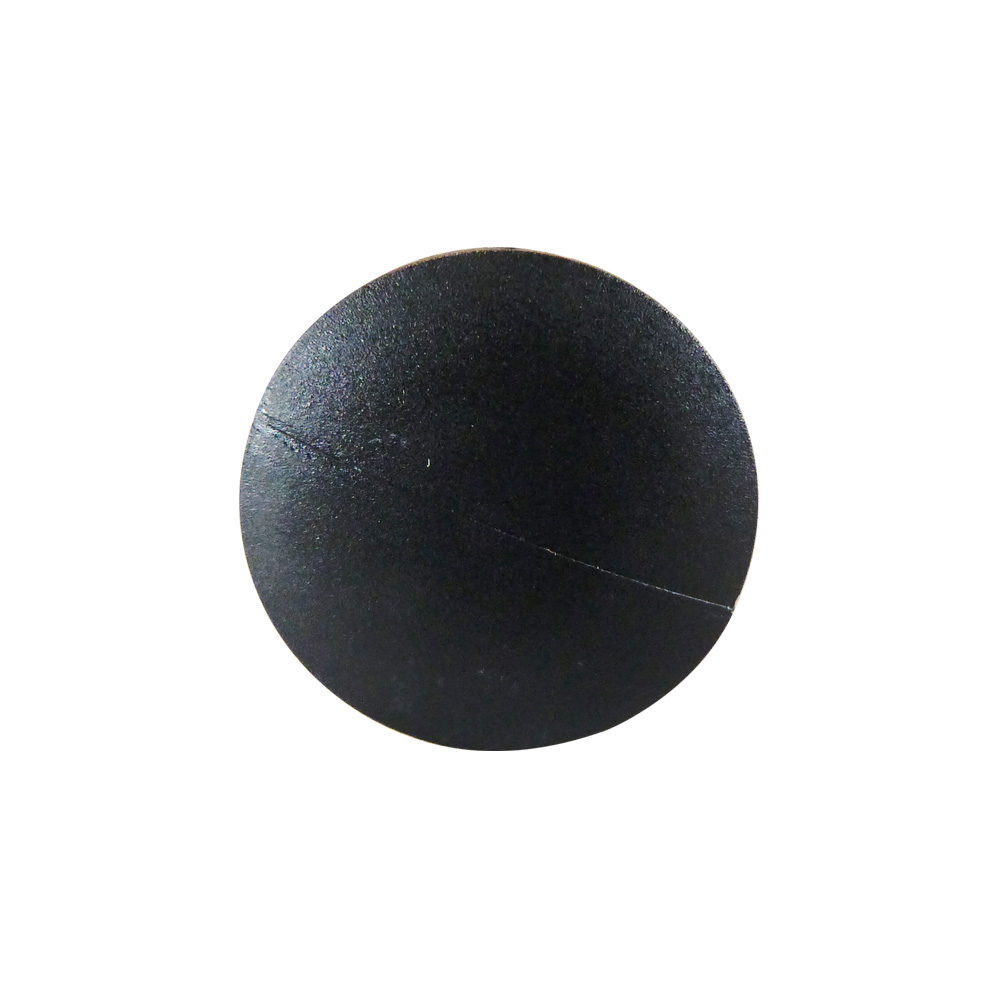

Fir tree fastener - PA 6.6

Fir tree fastener - PA 6.6
Fir tree fastener - PA 6.6
Fir tree fastener - PA 6.6
Fir tree fastener - PA 6.6
Fir tree fastener - PA 6.6
Fir tree fastener - PA 6.6
Fir tree fastener - PA 6.6
Fir tree fastener - PA 6.6drawing_1
Product information
  • Plastic fir tree tree fasteners with flexible ribs, also known as pine tree buttons or barbed push fasteners, are available for hole diameters from Ø 3 mm to Ø 10 mm inclusive
  • Available for sheet thicknesses from 1 mm to 32 mm inclusive
  • Removable and non-removable versions
  • Compliant with UL 94-V2 Fire safety requirements up to a maximum of 105°C
  • Corrosion-resistant and good chemical resistance, also to oil and grease
  • Quick-fit fastener for manual assembly; reduces cost and saves time
  • This press-fit fastener is suitable for fastening cable holders, plates, panels, upholstery or for connecting parts together
  • Also suitable for plugging clearance holes, tapped holes and blind holes
  • These press-fit fasteners are commonly used in the automotive sector, for electrical appliances, machines, interior fittings, furniture, etc.

Material: PA 6.6 (polyamide)
Colour: black or white

Variants
  • Type A: Model A head
  • Type A-A: Model A head, textured
  • Type A-1: Model A head, non-removable
  • Type B: Model B head
Make your selection below

Legend
Bore=suitable for hole Ø, D=head Ø, h=head height, L=length, L1=length, Mat.=Material, Plate thickness=clamping range, Type=variant

Filter by
Reset all filters
1 pages -   1

Article Description Sheet thickness D Bore l l1 h
H27024020 Pine-tree-clips for bore Ø3,0 mm - black 4,0-12,0 5,5 3,0 14,5 2,3 1,5
H27024250 Pine-tree-clips for bore Ø5,0 mm - non-removable - black 1,6-6,4 10 5,0 8,3 3,7 1
H27024030 Pine-tree-clips for bore Ø5,0 mm - black 1,7-8,0 11 5,0 9,2 3,4 1
H27024050 Pine-tree-clips for bore Ø5,0 mm - black 1,5-11,0 11 5,0 14,5 3,3 1
H27024061 SP Pine-tree-clips for bore Ø6,35 mm - black 1,0-2,3 12,6 6,35 26,5 3,5 2,5
H27024060 Z SP Pine-tree-clips for bore Ø6,0 mm - black 0,8-10,0 13 6,0 13,5 5,5 2
H27024060 N Pine-tree-clips for bore Ø5,4-6,4 mm - natural 1,5-15,0 13 5,4-6,4 20 3 1,5
H27024060 N SP Pine-tree-clips for bore Ø5,4-6,4 mm - natural 1,5-15,0 13 5,4-6,4 20 3 1,5
H27024061 Pine-tree-clips for bore Ø5,6-6,4 mm - black 1,0-27,0 13 5,6-6,4 32 3 1,5
H27024100 Pine-tree-clips for bore Ø6,4 mm - black 3,6-10,0 15,9 6,4 14,5 2 1,5
H27024110 Pine-tree-clips for bore Ø6,4 mm - black 4,4-14,5 15,9 6,4 18,3 2 1,5
H27024260 Pine-tree-clips for bore Ø6,4 mm - non-removable - black 2,5-12,0 17,8 6,4 15 4,5 2,5
H27024170 Pine-tree-clips for bore Ø7,0 mm - black 3,5-18,0 19 7,0 22,9 4,5 1,5
H27024180 Pine-tree-clips for bore Ø7,0 mm - white 1,6-25,4 19 7,0 25,4 7,9 1,5
H27024290 Pine-tree-clips for bore Ø10,0 mm - non-removable - black 1,5-20,0 21,5 10 22,6 5,7 4
H27024160 Pine-tree-clips for bore Ø7,0 mm - black 2,0-32,0 25,4 7,0 34 4,5 3
408420.012000000.000 Pine-tree clip POM for bore Ø5,5mm - panel thickness 6-9mm - head Ø12x2mm - L=18mm - Black 6-9 12 5,5 18 0 2
408420.012000000.004 Pine-tree clip POM for bore Ø5,5mm - panel thickness 6-9mm - head Ø12x2mm - L=18mm - Natural 6-9 12 5,5 18 0 2
408420.014000000.004 Pine-tree clip POM for bore Ø7,8-8,0mm - panel thickness 1,5-7mm - head Ø14x2,4mm - L=19mm - Natural 1,5-7 14 7,8-8,0 19 0 2,4
408430.007812028.000 Pine-tree clip PA for bore Ø2,8mm - panel thickness 0,8-3,6mm - head Ø7,8x1,2mm - L=12mm - Black 0,8-3,6 7,8 2,8 12 0 1,2
408430.009511048.004 Pine-tree clip PA for bore Ø4,8mm - panel thickness 0,8-4mm - head Ø9,5x1,5mm - L=11mm - Natural 0,8-4 9,5 4,8 11 0 1,5
408430.009511050.000 Pine-tree clip PA for bore Ø5,0mm - panel thickness 1,5-3,5mm - head Ø9,5x1,6mm - L=11mm - Black 1,5-3,5 9,5 5,0 11 0 1,6
408430.009511050.004 Pine-tree clip PA for bore Ø5,0mm - panel thickness 1,5-3,5mm - head Ø9,5x1,6mm - L=11mm - Natural 1,5-3,5 9,5 5,0 11 0 1,6
408430.010311030.004 Pine-tree clip PA for bore Ø3,5mm - panel thickness 0,9-4mm - head Ø10,3x2,5mm - L=11mm - Natural 0,9-4 10,3 3,5 11 0 2,5
408430.010311035.000 Pine-tree clip PA for bore Ø3,5mm - panel thickness 0,9-4mm - head Ø10,3x4,8mm - L=11mm - Black 0,9-4 10,3 3,5 11 0 4,8
408430.010311035.004 Pine-tree clip PA for bore Ø3,5mm - panel thickness 0,9-4mm - head Ø10,3x4,8mm - L=11mm - Natural 0,9-4 10,3 3,5 11 0 4,8
408430.012714566.000 Pine-tree clip PA for bore Ø6,6mm - panel thickness 0,8-5mm - head Ø12,7x1,7mm - L=14,5mm - Black 0,8-5 12,7 6,6 14,5 0 1,7
408430.012714566.004 Pine-tree clip PA for bore Ø6,6mm - panel thickness 0,8-5mm - head Ø12,7x1,7mm - L=14,5mm - Natural 0,8-5 12,7 6,6 14,5 0 1,7
408430.014015052.000 Pine-tree clip PA for bore Ø5,2mm - panel thickness 0,5-3mm - head Ø14x3mm - L=15mm - Black 0,5-3 14 5,2 15 0 3
408430.014015052.004 Pine-tree clip PA for bore Ø5,2mm - panel thickness 0,5-3mm - head Ø14x3mm - L=15mm - Natural 0,5-3 14 5,2 15 0 3
408430.014015058.000 Pine-tree clip PA for bore Ø5,8mm - panel thickness 3-11mm - head Ø14x2mm - L=15mm - Black 3-11 14 5,8 15 0 2
408430.014015058.004 Pine-tree clip PA for bore Ø5,8mm - panel thickness 3-11mm - head Ø14x2mm - L=15mm - Natural 3-11 14 5,8 15 0 2
408430.014019065.004 Pine-tree clip PA for bore Ø6,5mm - panel thickness 3-7mm - head Ø14x2,5mm - L=19mm - Natural 3-7 14 6,5 19 0 2,5
408430.014317072.004 Pine-tree clip PA for bore Ø7,2mm - panel thickness 2-5,5mm - head Ø14,3x2mm - L=17mm - Natural 2-5,5 14,3 7,2 17 0 2
408430.015018058.000 Pine-tree clip PA for bore Ø5,8mm - panel thickness 6-8,5mm - head Ø15x3mm - L=18mm - Black 6-8,5 15 5,8 18 0 3
408430.015018058.004 Pine-tree clip PA for bore Ø5,8mm - panel thickness 6-8,5mm - head Ø15x3mm - L=18mm - Natural 6-8,5 15 5,8 18 0 3
408430.016019058.000 Pine-tree clip PA for bore Ø5,8mm - panel thickness 3-15mm - head Ø16x2mm - L=19mm - Black 3-15 16 5,8 19 0 2
408430.016019058.004 Pine-tree clip PA for bore Ø5,8mm - panel thickness 3-15mm - head Ø16x2mm - L=19mm - Natural 3-15 16 5,8 19 0 2
408430.018023070.000 Pine-tree clip PA for bore Ø7,0mm - panel thickness 3-19mm - head Ø18x2mm - L=23mm - Black 3-19 18 7,0 23 0 2
408430.018023070.004 Pine-tree clip PA for bore Ø7,0mm - panel thickness 3-19mm - head Ø18x2mm - L=23mm - Natural 3-19 18 7,0 23 0 2
