9.3.4
Hexagon flange nut - Plastic
Product information
- Fully plastic hexagon flange nuts, are available for metric thread from M4 to M24 inclusive
- Smooth flange, so non serrated
- Impact-resistant
- Weather resistant
- Lightweight
- Good chemical resistance, also to oil and grease
- Electrically insulating
- Full plastic flange nuts provide better pressure distribution of preload forces and are also suitable for situations with oversized mounting holes
- Ideal in situations where metal lock nuts are not applicable due to the chemically aggressive environment.
Material: PA 6.6 (polyamide)
Colour: Natural
Available on request:
- other plastics: PP, PE, POM, PVDF
- RAL-colours
Legend

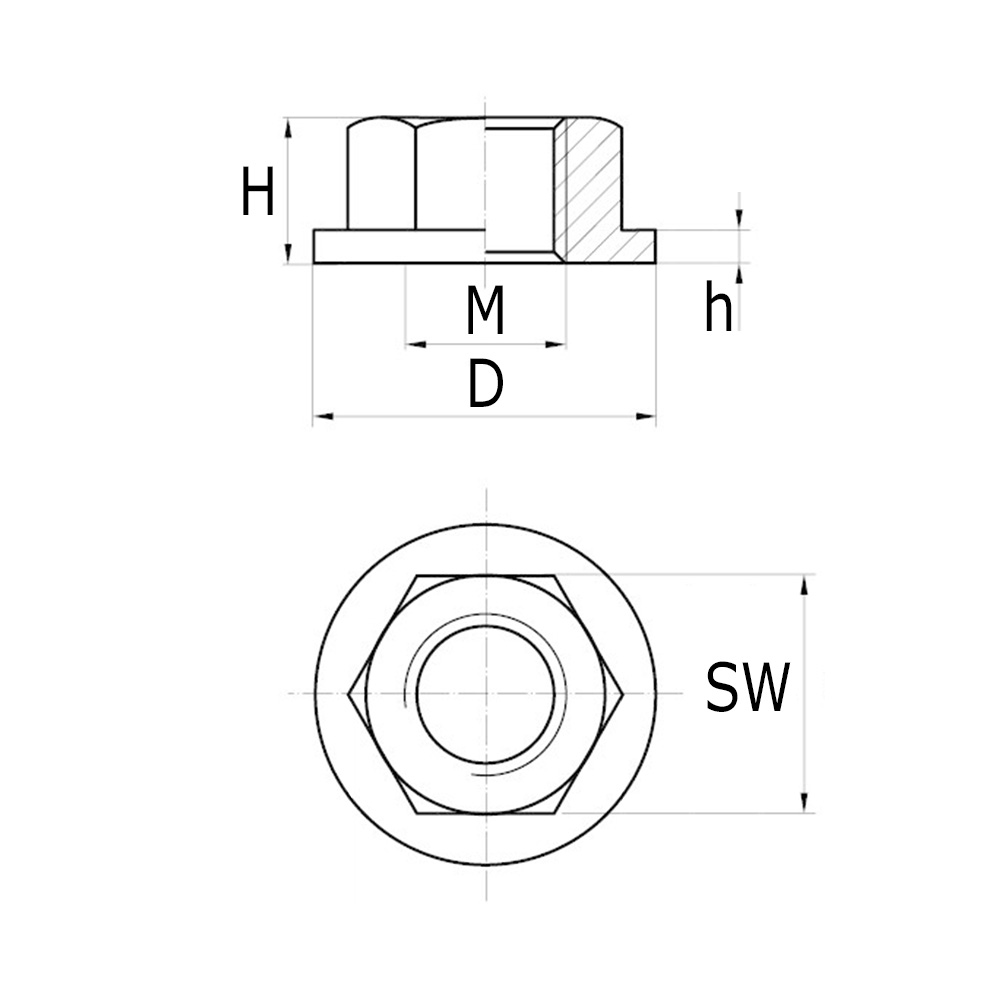

D=flange-Ø, H=total height, h=flange height, M=thread, SW=spanner size in mm
