21.8.7
Cable tie mounts – self-adhesive
Product information
- Self-adhesive cable tie mounts are available in various size from 13x13 mm to 40x40mm inclusive
- Suitable for Strap widths up to 9mm
- 4-sided entry for cable ties
- Self-adhesive backing with excellent adhesion for a reliable and durable fixation
- Some types are provided with bore to install with screw or bolt
- Compliant with UL 94V-2 fire safety requirements
- Suitable for use from -20 °C to +60 °C
- Self-adhesive cable tie mounts, also known as cable tie base mounts or tie wrap bases, are suitable for use in combination with cable ties/ty-raps for quickly attaching cables, cable harnesses, hoses and pipes etc.
Material: PA 6.6 (polyamide 6.6)
Colours: natural or black
Types
Type A: Self-adhesive without bores
Type B: Self-adhesive with two bores

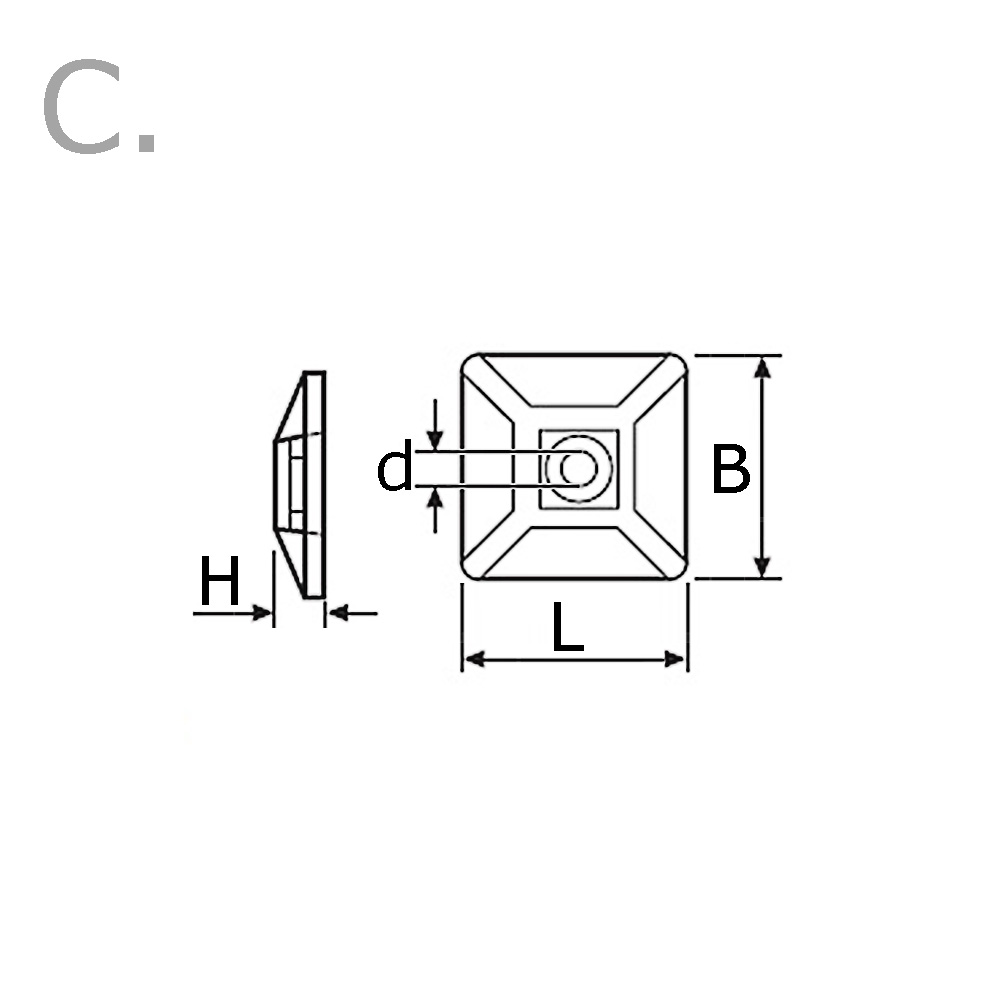

Type C: Self-adhesive with one countersunk bore
Legend
B=width, Bore=number of bores, d=Ø-bore, H=Height excl. adhesive backing, L=length, M=screw size, Type=Type, Version=Maximal strap width in mm
