7.1.2

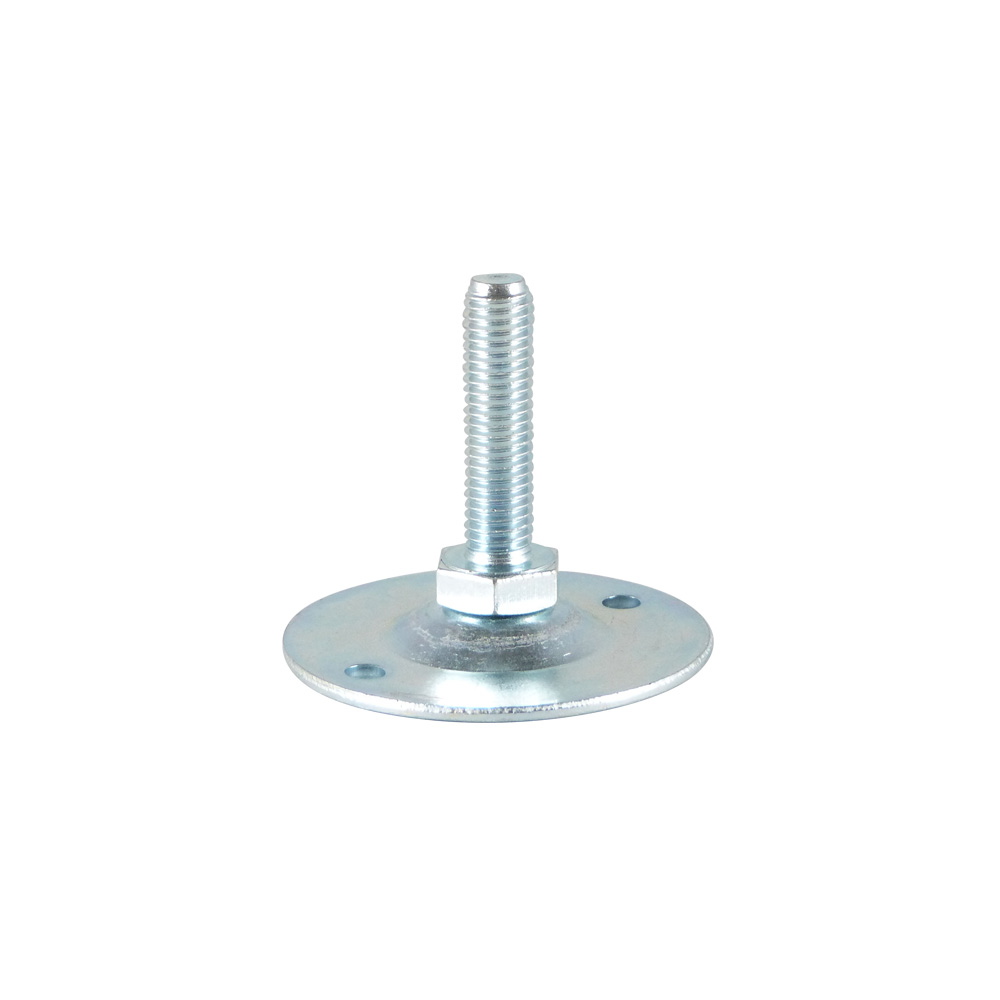

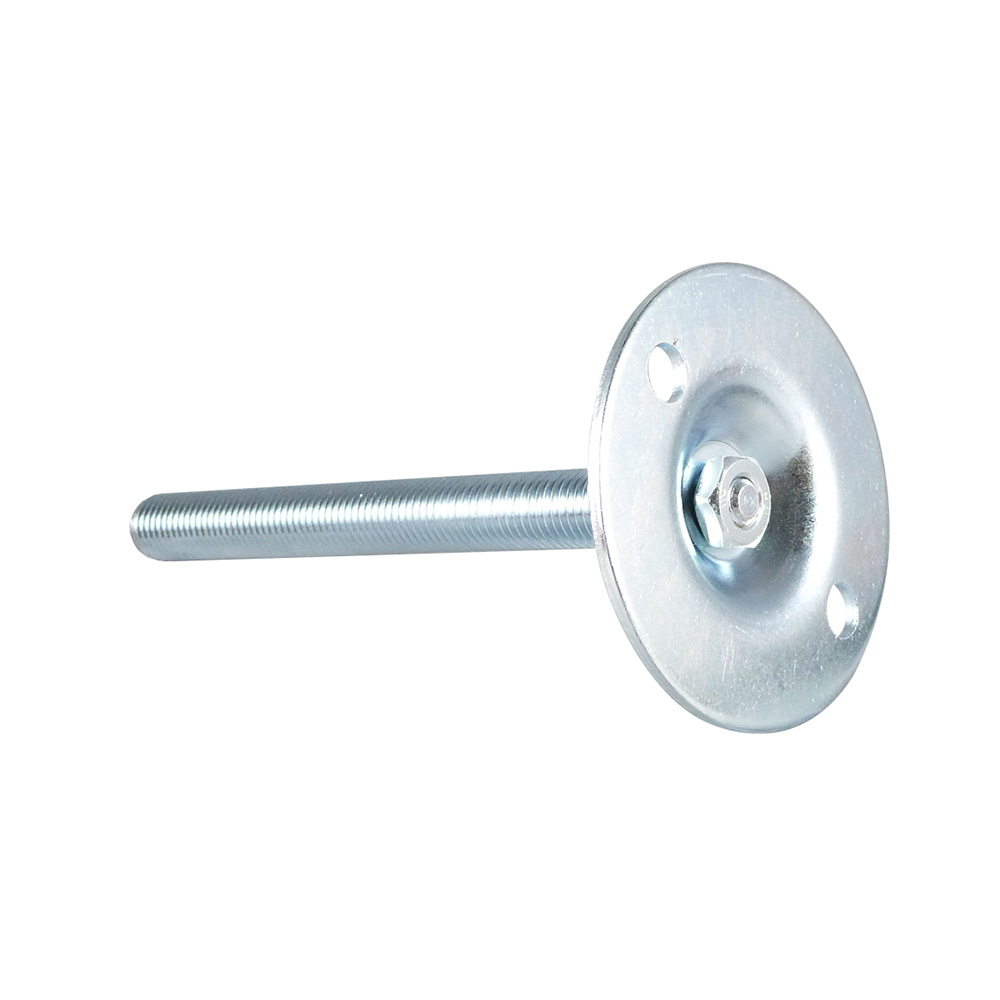

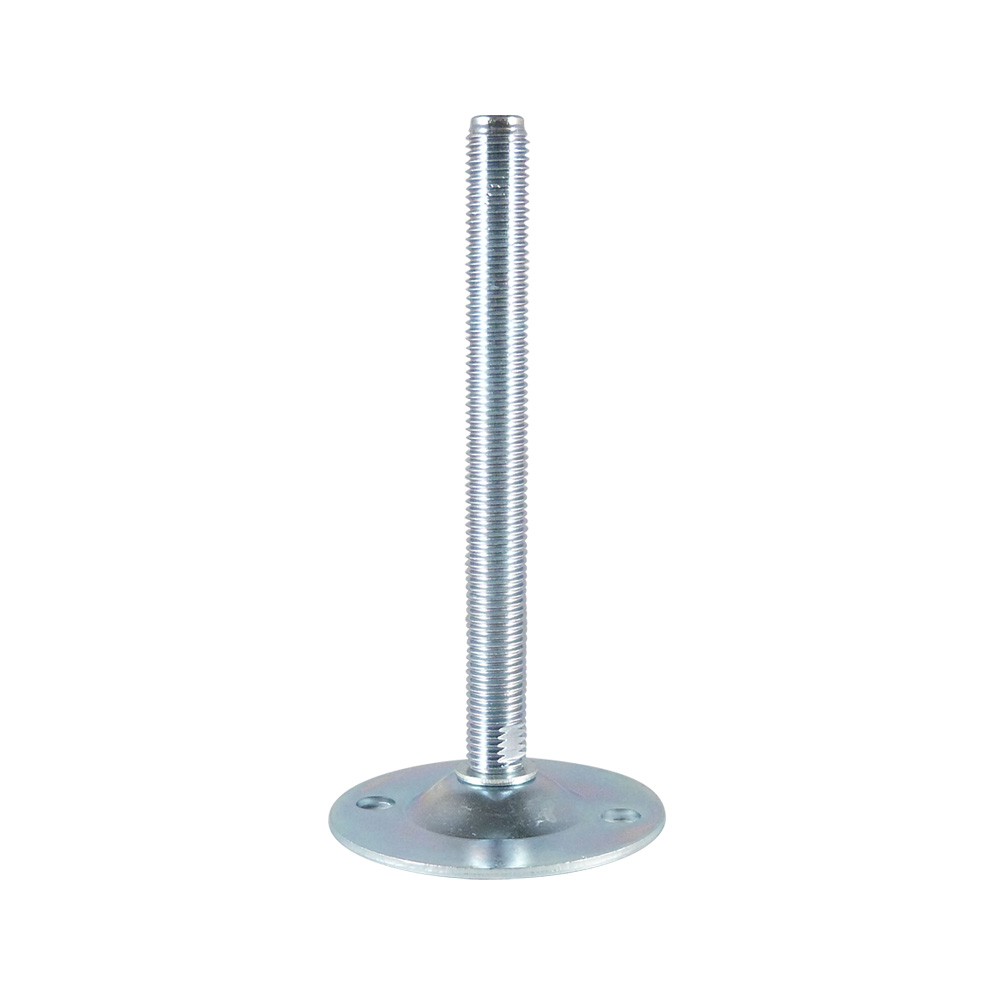

Levelling foot with swivelling galvanised steel base – with fixing holes
Product information
- Levelling feet with a round swivelling galvanised steel base and mounting holes are available with threaded stems, thread size M8 to M16 inclusive, and thread lengths from 16 mm to 150 mm inclusive
- Base from Ø 30 mm to Ø 124 mm inclusive
- The base has two or four mounting holes for fixing it to a support surface or floor
- The threaded stem, with a hexagonal shoulder or two flats, swivels relative to the base

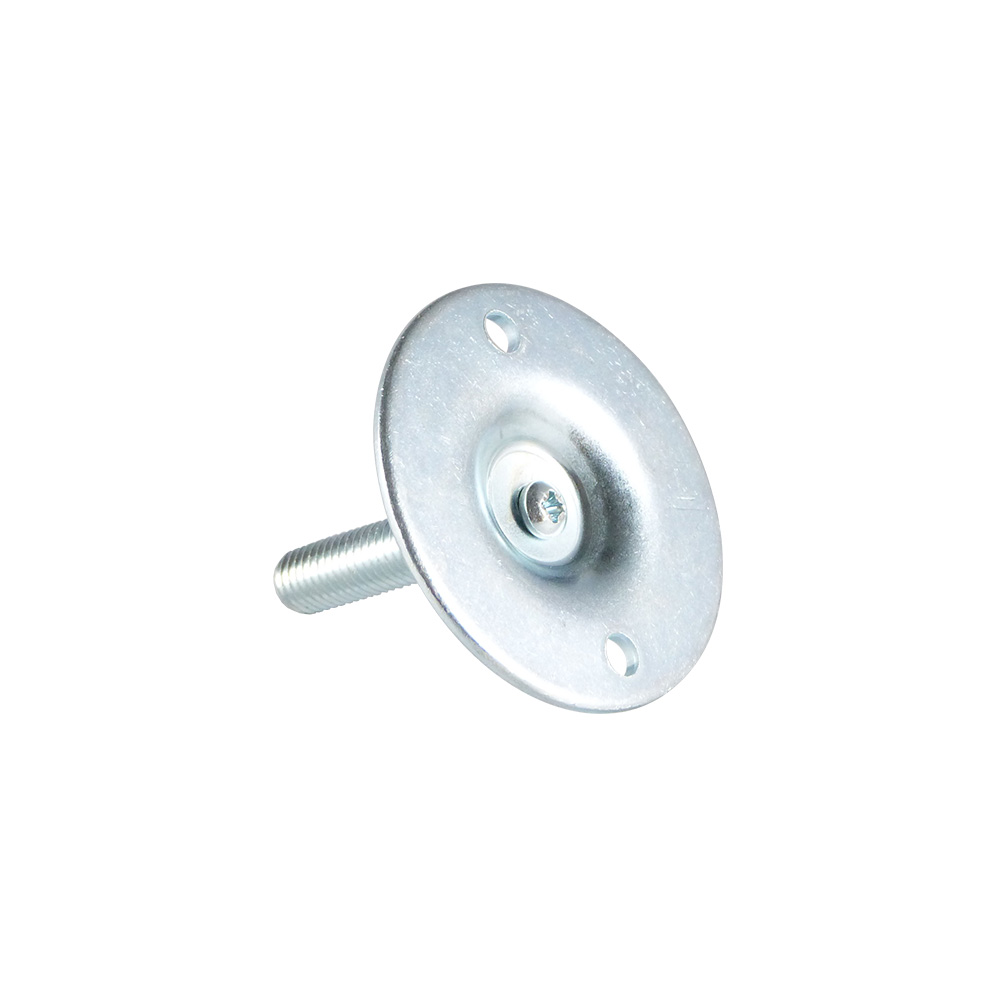

- Base-size up to Ø80mm: Crosshead drive in the base (Pozidrive 2) to allow easy adjustment using a power tool (maximum torque 3.4 Nm)
- Static load capacity of 2000 kg
- 100% steel levelling feet with a swivelling base are suitable for use as height adjusters for furniture such as shelf racks and workbenches, and for frames, equipment, machines, etc.
Material: base - galvanised steel, stem – (DIN 558-4.6-A2F) galvanised steel
Colour: Zinc coloured
Accessory:
- Matching plastic protective covers for galvanised steel base
Legend

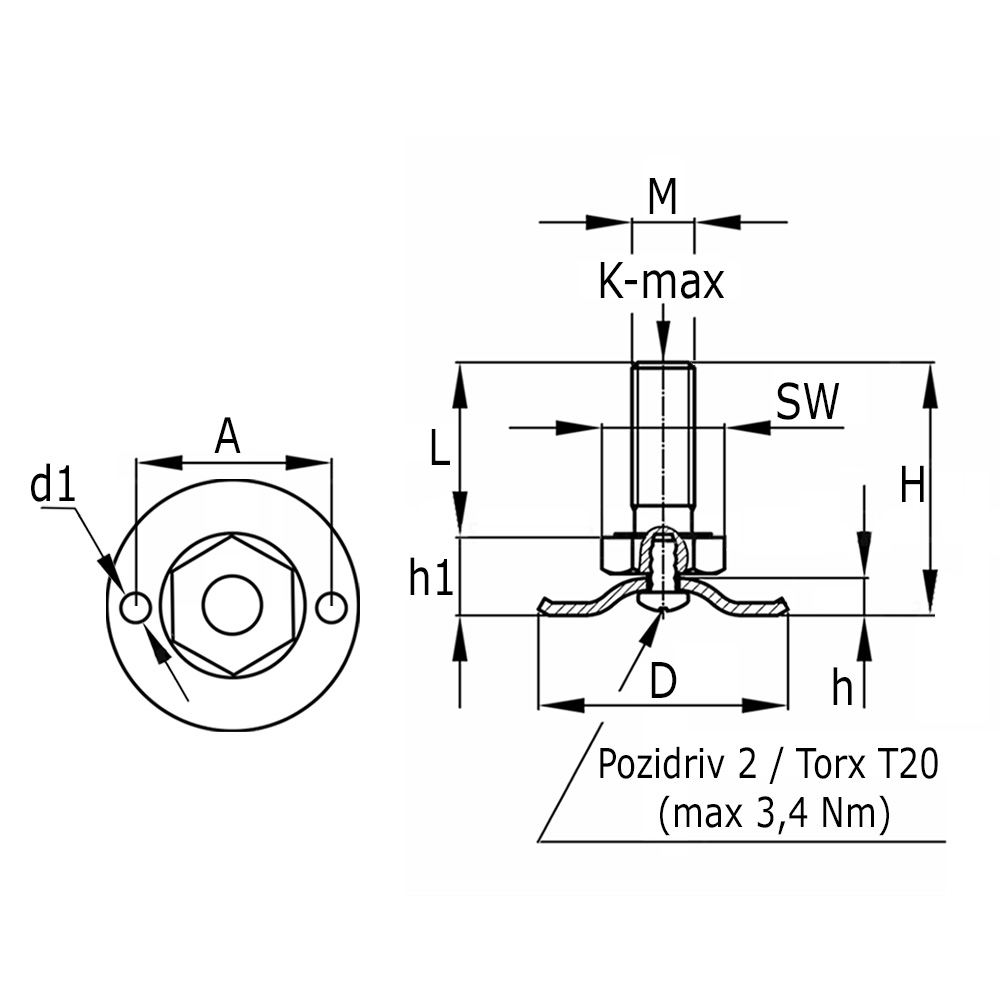

A=distance between hole centres, Bore=number of bores in base, D=base Ø, d1=bore-Ø, H=overall height, h1=height, K=maximum static load in kg, L=thread length, M=thread size, SW=spanner size
